Manufacturer: Philips
 Model: MX8000 Dual
 YOM: 2005 shipped out from Philips factory
 Serial number 8393
 SW level: V2.5.5.8
 Tube CTR2112 original tube came with system
 Scan seconds 594766( Record at 20150115)
 De-installation Date 20150309
 Chiller N/ A
 Expected Available
 Date: In warehouse
 Injector N/ A
 Laser Printer N/ A
 UPS N/ A
 EKG N/ A

 Multislice CT is revolutionizing the clinical practice through dramatic increases in productivity and improved clinical outcomes. Mx8000 Dual Slice delivers the benefits of multislice CT to any hospital or clinic with a scaleable platform that can be field upgraded with the latest clinical and technological advances. The Mx8000 Dual-slice CT acquires two slices simultaneously to deliver up to four times more coverage than a conventional single slice scanner. In addition of high productivity, Mx8000 serves as the gateway to advanced applications such as low dose imaging, cardiac imaging, and functional CT.

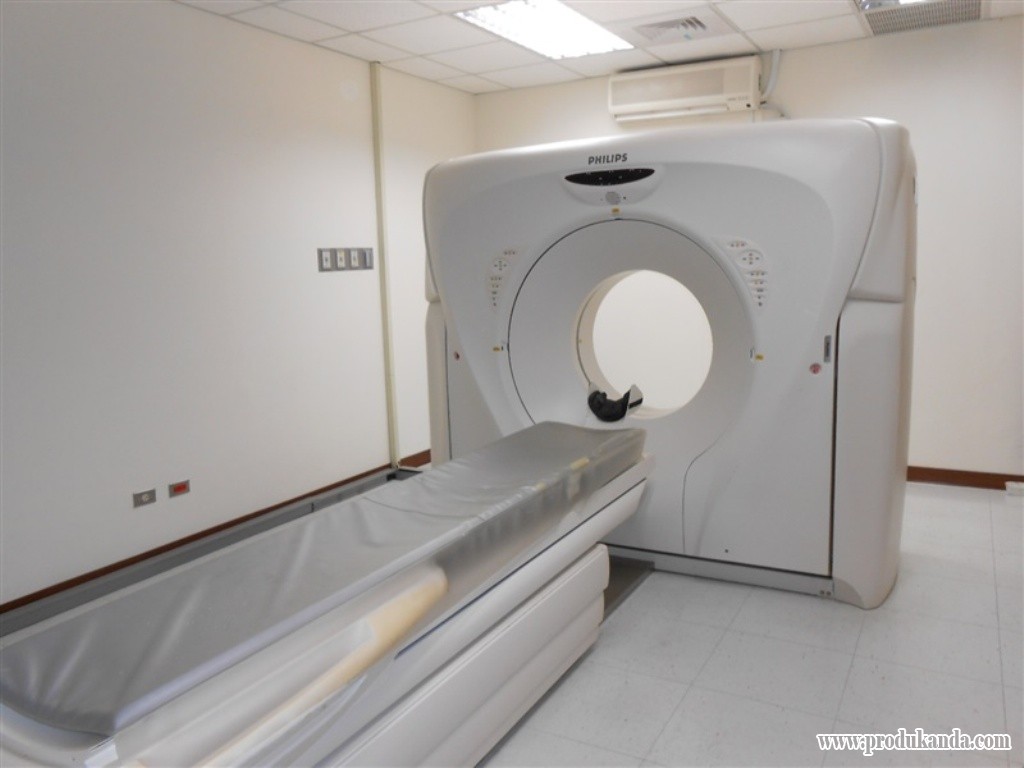

 Mx8000 Dual-slice CT System components include: Gantry, patient table, and the Mx8000 operating, viewing and processing console with ESP II graphical user interface.

 Mx8000 Dual-slice CT System Includes:

 - Simultaneous two slice acquisition

 - 1.0 mm minimum slice thickness

 - 0.5-second image reconstruction time

 - 0.75-second full 360-degree sub-second scan mode

 - Up to 60 seconds of uninterrupted spiral scanning

 - 36 kW high frequency, high voltage generator

 - 6.5 MHU high power X-ray tube ( 80% Usable capacity)

 - Dynamic Focal Spot ( DFS) doubles data density providing up to 24 lp/ cm ultra-high spatial resolution, in axial and spiral scanning

 - Operating, viewing and processing console with ESPTM II Graphical User Interface

 - 1 GB RAM Memory

 - UltraImage

 - DICOM 3.0 compliance including Print, Query/ Retrieve, Storage and more

 - Auto Archive and MasterFilm Auto Filming

 - 3D SSD, MIP, MPR, Q-CTA, and MasterLook Image Enhancement

 IMAGE QUALITY PERFORMANCE

 Spatial Resolution:

 Ultra-high mode: 24.0 lp/ cm @ cut-off ( optional)

 High mode: 16.0 lp/ cm @ cut-off

 Standard mode: 13.0 lp/ cm @ cut-off

 Noise: 0.29% with 120 kVp, 300 mAs, and 2 x 5 mm-slice thickness as measured on the Philips Medical System’ s system phantom ( 21.6 cm water equivalent)

 Low Contrast Resolution: better than 4 mm at 0.3% with CATPHAN phantom

 Absorption Range: -1000 to + 3095 Hounsfield units
